Presentation: Final Model, Drawings + Renderings

If you have been taking this class with the intention of designing something for your own personal use, then now is the time that you would take your final design and make a finished version in the final material!

We have some great fabrication classes to help you with that if you don't have experience in the material you'd like to use, or just want to brush up on your skills:

Metalworking with randofo

Mold Making & Casting with me

Welding with audreyobscura

Woodworking with mikeasaurus

Lamp Making with me

And classes that cover almost everything electronic.

Depending on the fabrication method you plan to use, this could mean having to make 2D CAD drawings for cutting parts on a CNC machine or creating a 3D rendering for use with a 3D printer. I cover both of these processes below.

If you don't require any further info to move ahead with your final product, then thank you so much for taking my class! And please send me photos of your finished thang.

If you will be presenting your design or handing it off to be manufactured, you will want to follow along with this final lesson.

There are 3 main components to a completed design:

Presentation model/prototype
Technical drawings
3D rendering

Step 1: A Presentation Model/Prototype

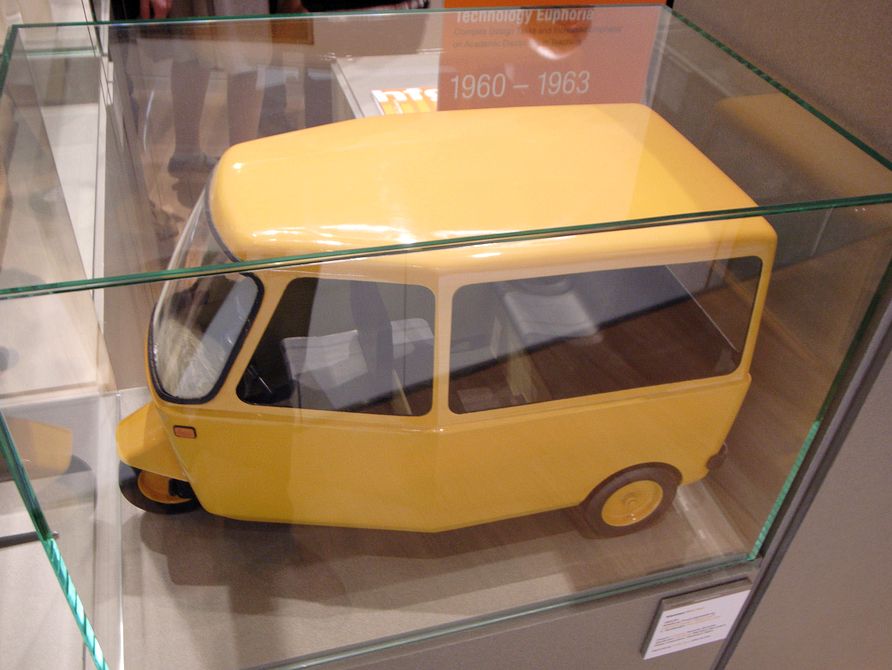

As I mentioned earlier, you can absolutely make most final prototypes using hand and standard studio/workshop tools. The final presentation model is meant to be a clear representation of what the finished product would look like. It doesn't have to function as the finished, manufactured product would, nor does it even have to be out of the same material that the product will be produced in (painted foam is commonly used). It just needs to communicate the form, scale, and look of the product so that others can understand your vision (think movie prop).

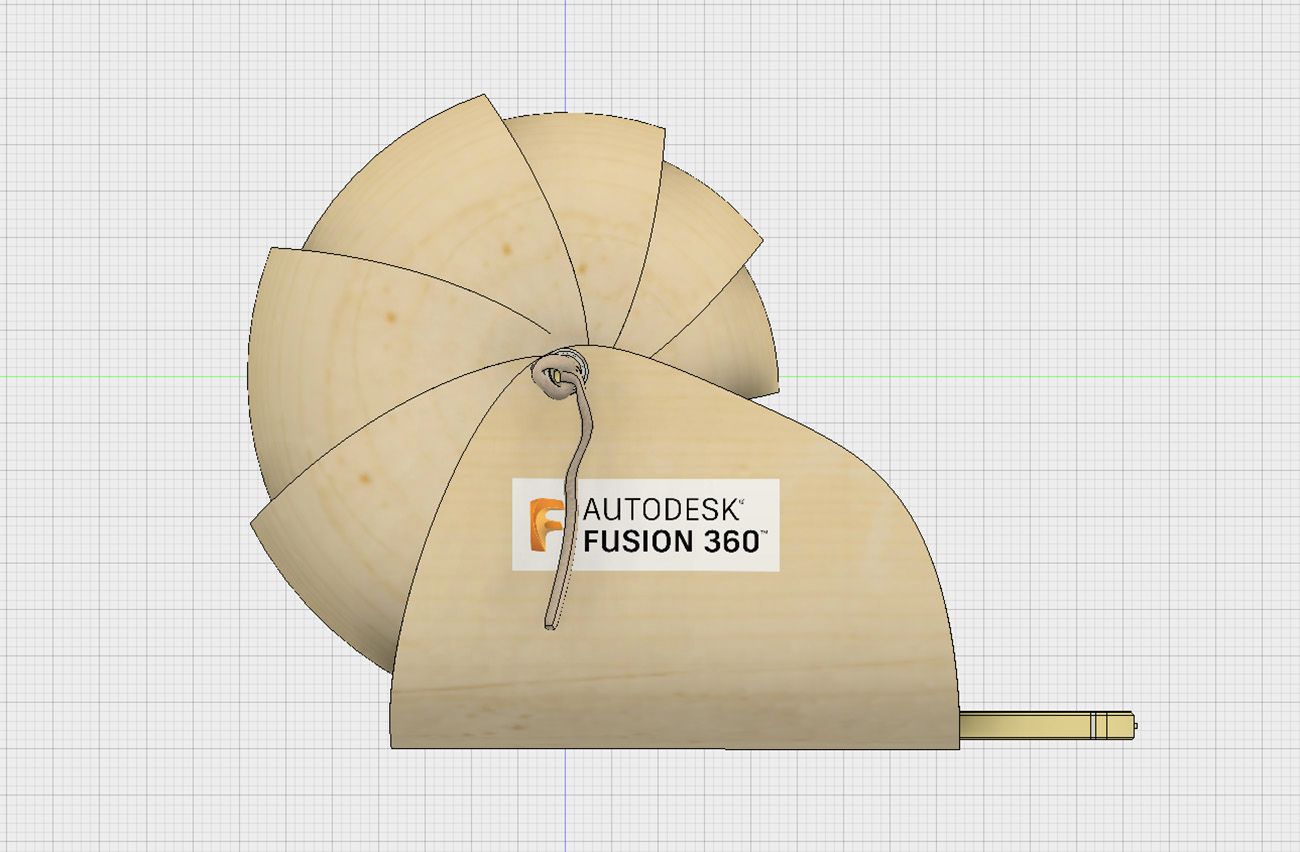

Full disclosure: In most cases, a 3D rendering of the finished design will suffice, especially for manufacturing (the image for this lesson is a 3D model of my project NOT a real one!). But if you are trying to get funding or convince someone of the genius that is your new idea, having a physical model that they can see in space and touch is incredibly helpful.

Step 2: Technical Drawings

The job of technical drawings is to visually communicate dimensions, specifications, and how something is constructed. A set of technical drawings is called working drawings, and these are sent to manufacturers so they have all the information they need to work from (shapes, dimensions, material specifications, etc.) when producing your product.

These can still be hand drawn, but if you use a CAD (computer aided design) or vector based software to create your drawings (like AutoCad or Adobe Illustrator), those drawings can also act as a 'pattern' and be exported as a file type that communicates with laser cutters, water jet cutters, etc. – any CNC machine that cuts flat parts. Providing CAD files can save you money, as it will save the manufacturer's from having to generate those drawings themselves.

If you'd like to learn how to make your own rapid prototyped parts form CAD drawings, check out the following free Instructables classes:

Laser Cutting with JON-A-TRON

CNC with JON-A-TRON

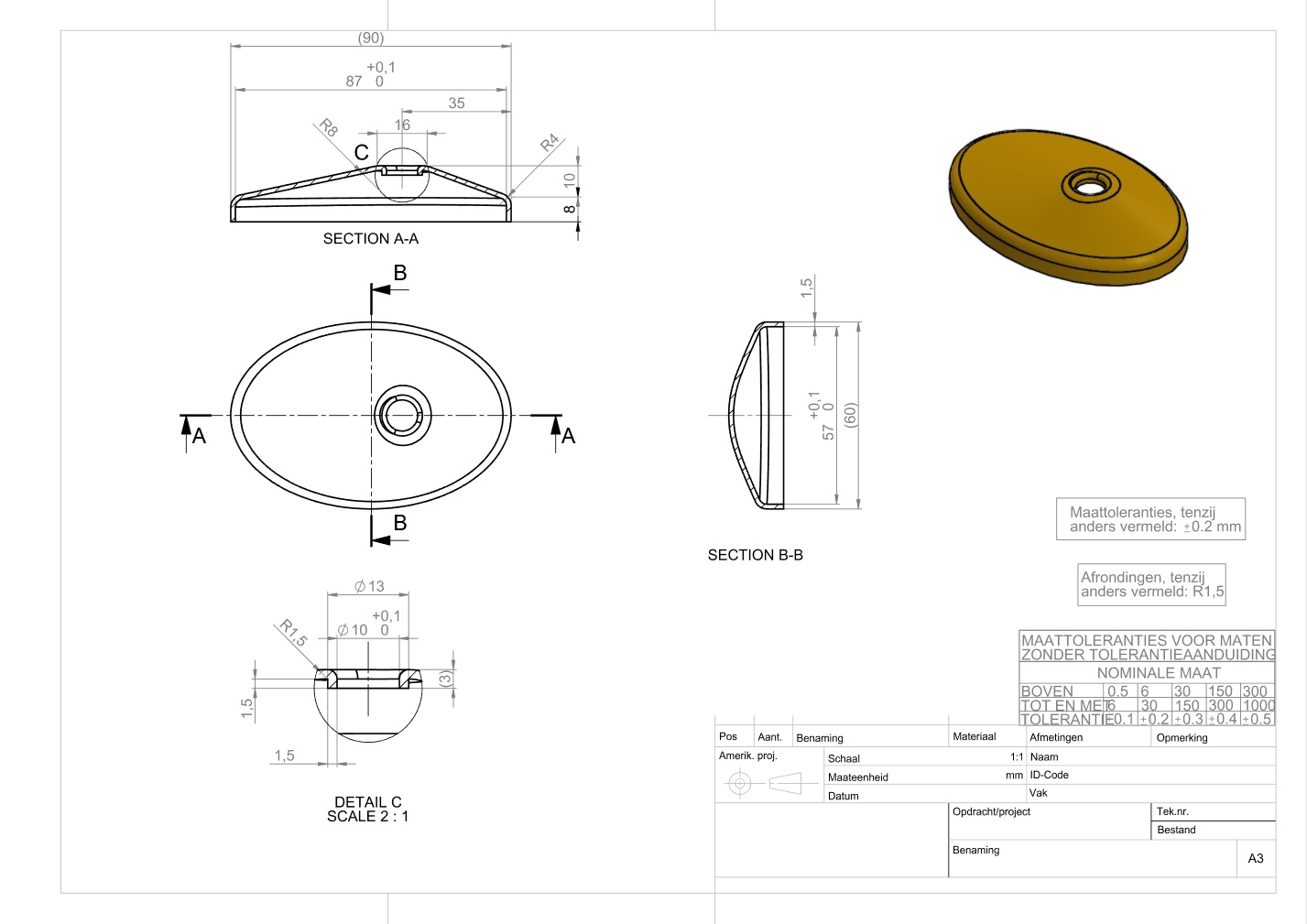

A technical drawing usually contains top down drawings of the individual pieces, front, side, and section views –all with dimensions, a 3/4 view of the complete product, and sometimes an exploded view of how the parts fit together.

As I mentioned in the ideation lesson, JON-A-TRON also has a class on Design Sketching that covers all of the terms and how to draw the different views you'll need for your drawings.

If you don't already know how to use a 2D CAD or vector based software, I recommend downloading a free trial version of AutoCad LT and going through their great tutorials.

Step 3: 3D Rendering / Drawing

Generating a 3D model of your product is a great way to:

create a visual representation of your 'finished' product for use in presentations, pitch decks, and to send to manufacturers to aid production
get away with NOT having to do your technical drawings in a separate 2D software

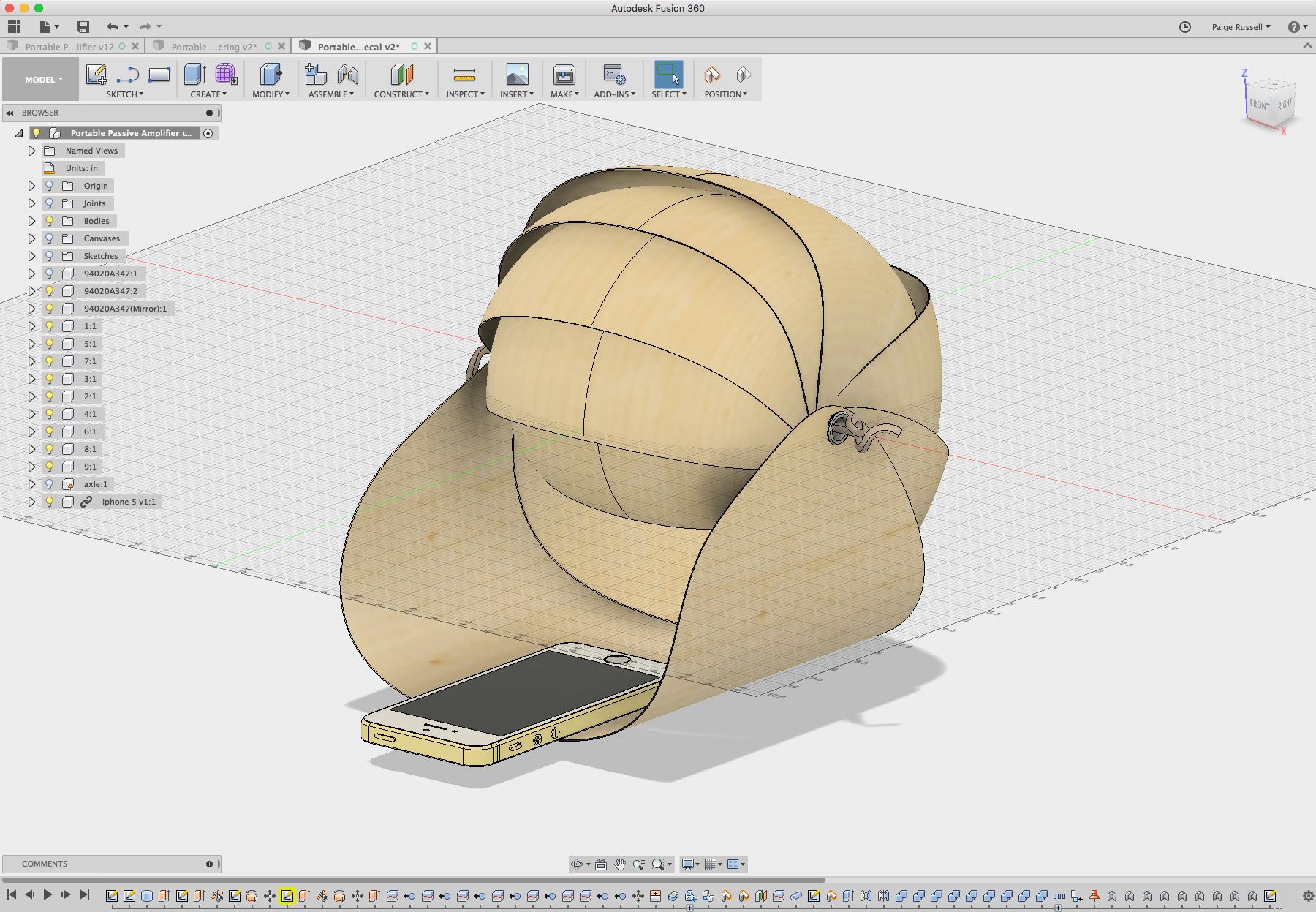

3D CAD/CAM (computer aided manufacturing) software will not only create beautiful renderings, but allow you to generate technical drawings with dimensions, do 3D exploded drawings of all the parts – showing how they go together – and export files for 3D printing or CNC machining.

If you're interested in learning how to 3D render and print, I highly recommend trying the 3D CAD/CAM software Fusion 360. Full disclosure, it's an Autodesk product (Autodesk owns Instructables), but it really is just a super easy-to-use, intuitive software. Plus it's FREE for students, teachers, hobbyists, and start-ups!

Autodesk Fusion 360 (free)

This is a powerful 3D modeling platform that's easy to learn but has endless potential. With it, you can design complex 3D objects for practically any kind of fabrication, digital or otherwise.

Click here to sign up for free as a Hobbyist / Enthusiast / Startup or as a Student or Educator.

Follow one of the links above to download the app (don't use the App Store on Mac).
Enter your email and download the free trial.
Install and setup a free Autodesk ID account.
When you open Fusion, select the Trial Counter in the upper toolbar (it tells you how many days are left on your trial).
In the next dialog box, select "Register for Free Use".
Sign up as a Start-Up or Enthusiast (Free). You can also Sign up as a Student or Educator (Free) if you're a student or educator at a registered institution. This will give you free use of Fusion 360 for as long as you need it (not just a 30-day trial).
Select the "I accept Terms and Conditions" checkbox and click Submit.

Once you've downloaded the software, check out JON-A-TRON's 3D Printing Class. It will take you through creating a 3D rendering step-by-step! And then once you've got a handle on generating those, he'll show you how to 3D print your creation!

NOTE: My 3D renderings were done by Michael Sagan, the head of the Fusion 360 Customer Success Team (I've just started learning the program!) and they also have lots of helpful resources, also know as Virtual Labs that troubleshoot the Fusion 360 learning curve. They also have great webinars you can sign up for coming up on different Fusion 360 features. Check them out!

Another way to get a 3D rendering of your design into a 3D software without having to draw it, is to 3D scan your final prototype. My co-worker MikaelaHolmes has a great (free!) class on 3D scanning using photogrammetry – which means that you don't need an expensive 3D scanner, just a camera! This is an easy and low-tech way to get high tech results!

The future is now. :)
