Introduction: All in One Weather Station Using Eps8266(Nodemcu)

By
About: All about Electricals ,Electronics and Embedded systems. PCB designer. Troubleshooting ,Electrical and Technical analysis, Automation , Microcontrollers ,PCB designing, Sensors , Actuators and Real-time OS are…

This project is about the creation of an indoor weather station with air quality sensors,humidity, temperature, CO2,sSO2,CO,Vibration and wind sensor

Step 1: Create a DETAILED Schematic of What You Are Doing

This project is about the creation of an indoor/outdoor weather station with all the possible parameter measurement

The station has several sensors for:

  • Humidity,Temperature (DHT22/11)
  • MQ2 (Lpg,Propane,Alcohol)
  • MQ135 (Air quality sensor -CO,SO2,CO2)
  • Rain sensor
  • Vibration sensor
  • Wind flow sensor

The resulting data can be displayed various platforms like on a TFT screen,through an online dashboard or a Mobile app.

For the schematic i have used EasyEDA software

https://easyeda.com/

Step 2: Select the Perfect Microcontroller for Your Project

NodeMCU is an open source firmware for which open source prototyping board designs are available. The name "NodeMCU" combines "node" and "MCU" (micro-controller unit). The term "NodeMCU" strictly speaking refers to the firmware rather than the associated development kits.

As i wanted a IOT platform integrated to my project,there is no other mcu(microcontroller) better than nodemcu(esp8266)

Step 3: Select the Sensors for Weather Monitoring

In order to develop the project we will need the following components:

  • NodeMCU ESP8266 microcontroller
  • 16 channel analog Multiplexer
  • LCD 16x2 I2C shield (optional as we will be using IOT Dashboard to monitor)
  • MQ2
  • MQ135
  • DHT22
  • Vibration sensor Wind sensor

Why Analog multiplexer?

It is very important for NodeMCU as it only has one Analog Pin, so for multiple sensors we require a analog multiplexer.

Step 4: Designing the PCB

As we will using this as a complete module,we then require a PCB board.

I have designed this using easyEDA

https://easyeda.com/

easyEDA Project

Step 5: Simulated 2D and 3D Design View

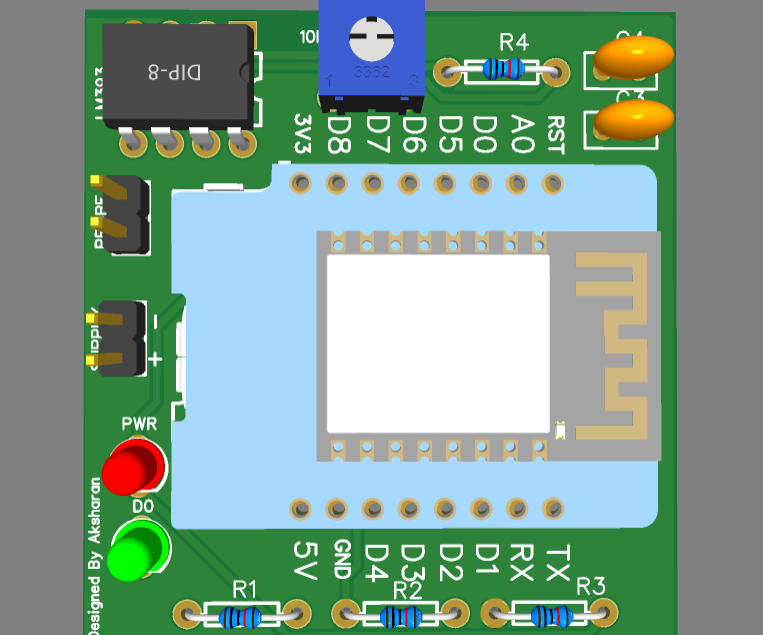

This is how our board will look!

Step 6: PCB Order

I have ordered this PCB from

NextPCB

Step 7: Soldering Time!!!!!

This is how a neat and structured soldering looks!

Very much similar to our simulated version :)

Step 8: Modules Intact(sensors)

Add the modules accordingly!!

Step 9: Working Time!!!!!!!!!!!

Yes its not any Star wars Shield, it is our board......pat yourself !

I have provided the code too:)

Attachments

Step 10: Dashboard (IOT)

For dashboard purpose i have used

Adafruit

Step 11: Thats It!! We Have Successfully Made a Handy All in 1 Weather Station Using Esp8266(nodeMCU)

You can customize this project as per your requirements.

Happy making!!

Stay tuned for more interesting and useful projects
